Description

SPECIFICATIONS



Brand Name: other

Certification: CE,FCC,RoHS,UL

Model Number: 12V Lifepo4 Battery

Nominal Capacity: 200AH

Origin: Mainland China

Size: 350*210*190mm

Type: LiFePO4

Weight: 18.5kg(+/-0.5kg)

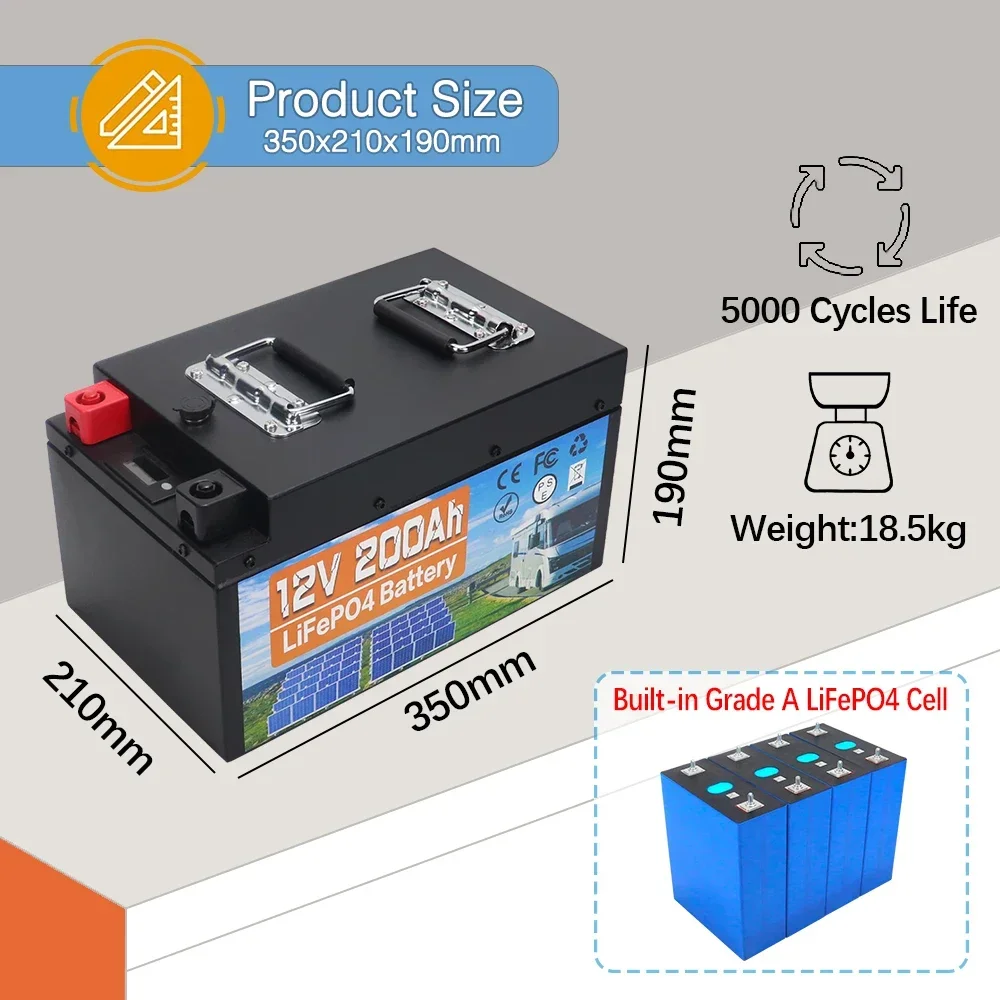

Battery type:
Battery capacity:200ah
Battery size:350*210*190mm (+/-10mm)
Weight:18.5kg(+/-0.5kg)
Built-in: 3.2V LiFePO4 Battery
Nominal voltage: 12.8V
Maximum charging current:50A
Instantaneous discharge current: 200A
Continuous discharge current:100A
Life: 5000 Cycles or more
Case Material: Matel
Charging temperature: 0~45°C
Discharge temperature:-20~60°C
Storage temperature:-20~65 °C
Operating voltage range:8.0V-14.6V
Overload protection voltage: 14.6V±0.05V
Protection voltage against overlo:8.0V±0.05V
Protect battery temperature:60°C plusmn 5°C
Output and parameters: high current positive / negative connection column (red positive, black negative)

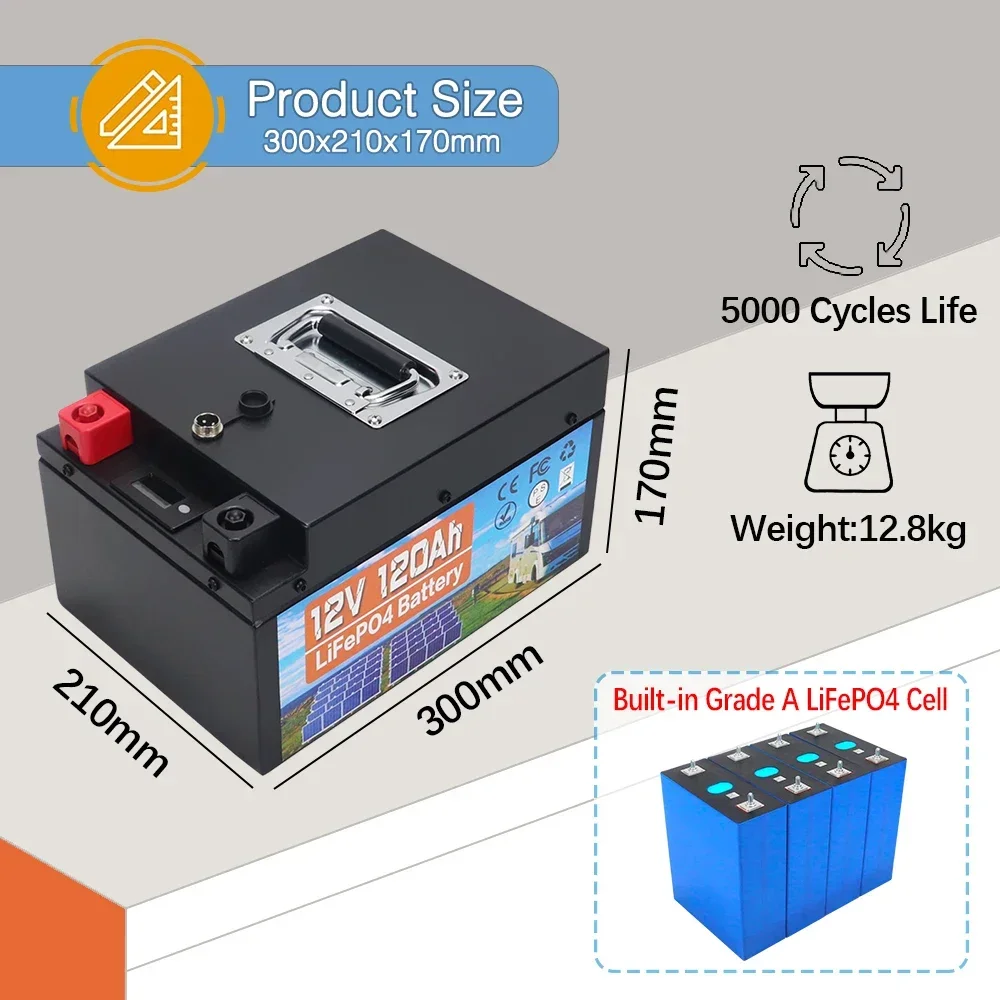

Battery type:
Battery capacity:120ah
Battery size:300*210*170mm (+/-10mm)
Weight:12.8kg(+/-0.5kg)
Built-in: 3.2V LiFePO4 Battery
Nominal voltage: 12.8V
Maximum charging current:50A
Instantaneous discharge current: 200A
Continuous discharge current:100A
Life: 5000 Cycles or more
Case Material: Matel
Charging temperature: 0~45°C
Discharge temperature:-20~60°C
Storage temperature:-20~65 °C
Operating voltage range:8.0V-14.6V
Overload protection voltage: 14.6V±0.05V
Protection voltage against overlo:8.0V±0.05V
Protect battery temperature:60°C plusmn 5°C
Output and parameters: high current positive / negative connection column (red positive, black negative)

Electric power application
●Start the battery motor
● Commercial buses and buses:
Electric cars, electric buses, golf carts/electric bicycles, scooters, RVs, AGVs, Marines, coaches, caravans, wheelchairs,
Electronic trucks, electronic sweepers, floor cleaners, electronic walkers, etc.
● Intelligent robot
● Power tools: electric drills, toys
Energy storage
● Solar wind power system
● City grid (on/off)
Backup system and UPS
● Telecom base, cable TV system, computer server center, medical equipment, military equipment
other apps
● Safety and electronics, mobile point of sale, mining lighting / flashlight / LED lights / emergency lights
Product advantages:
Easy to carry, high capacity, high release platform, long working hours, long life, safety and environmental protection
