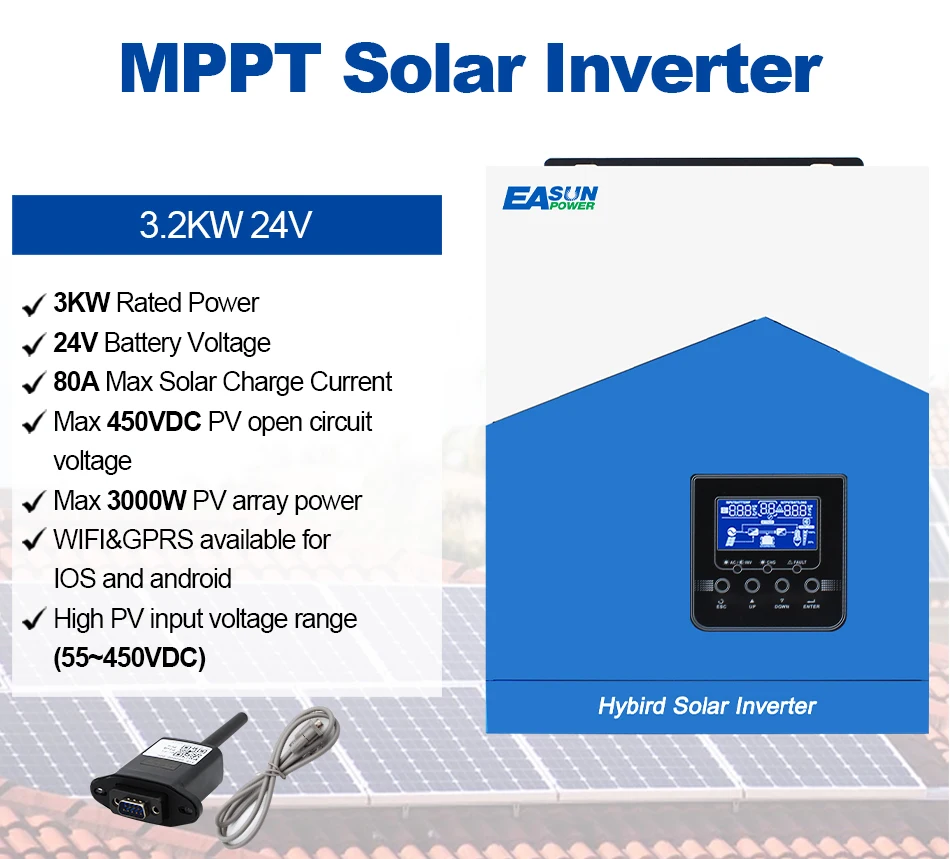

Description

SPECIFICATIONS



Battery Voltage: 24VDC

Brand Name: EASUN POWER

Certification: CE,FCC,RoHS

Floating Charge Voltage: 27VDC

Hign-concerned Chemical: None

MAX.PV Array Power: 3000W

MPPT Range@Operating Voltage: 55-450VDC

Maximum Charging Current: 80A

MaximumPVArray Open Circuit Voltage: 450VDC

Maximumcharge current: 60A

Model Number: SMH-II-3.2KW-WiFi

OperatingTemperature: -10°Cto55°C

Origin: Mainland China

Output Frequency: 50Hz/60Hz

Output Power: 1 – 200KW

Output Type: SINGLE

Over charge Protection: 31VDC

Rated Power: 3200VA/3000W

Size: 405x286x98mm

Surge power: 6400VA

Type: DC/AC Inverters

Voltage: 230Vac

Waveform: Pure Sine Wave

Weight: 7KG

is_customized: Yes

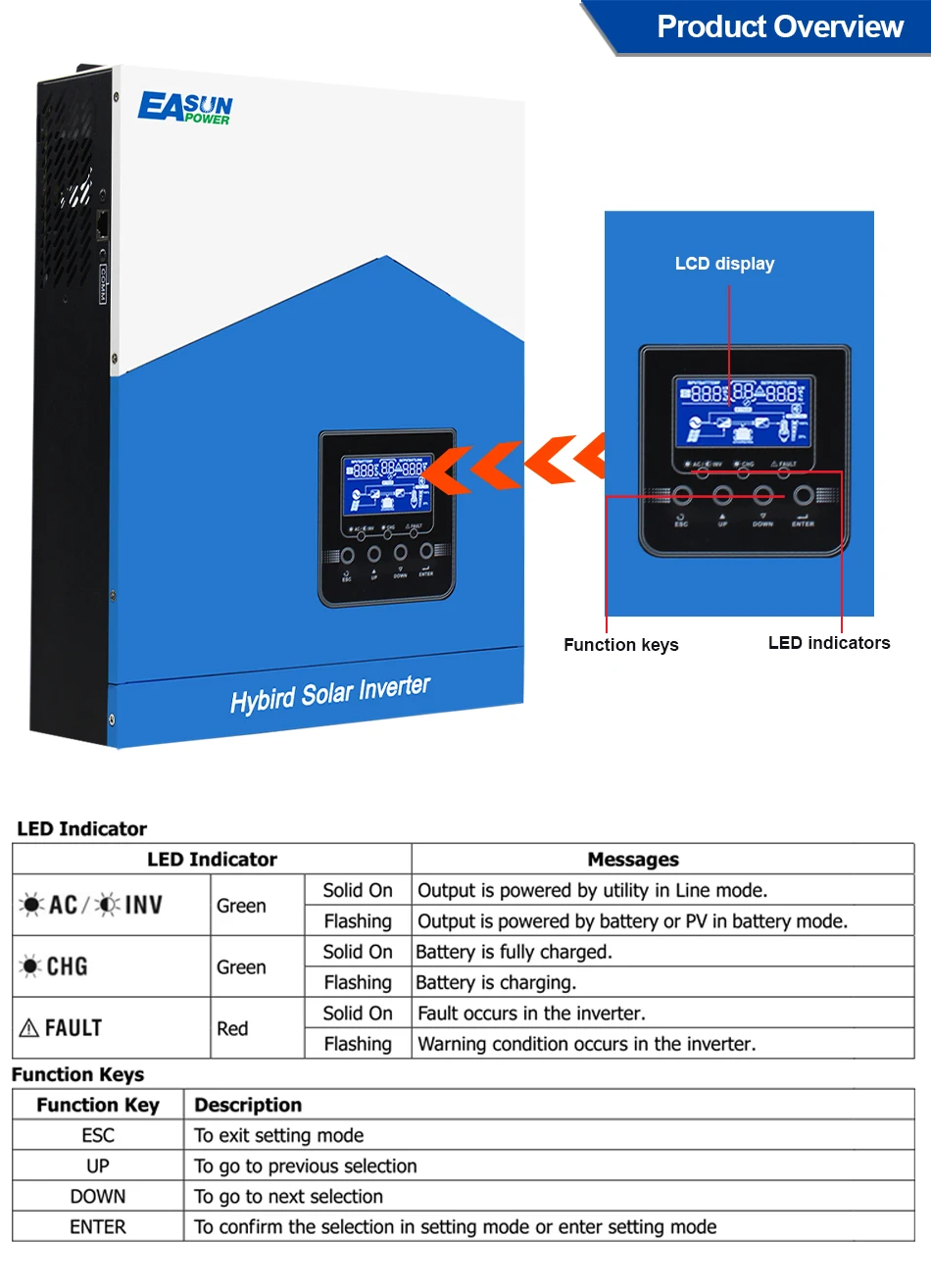

This is a multi-function inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.

Feature:

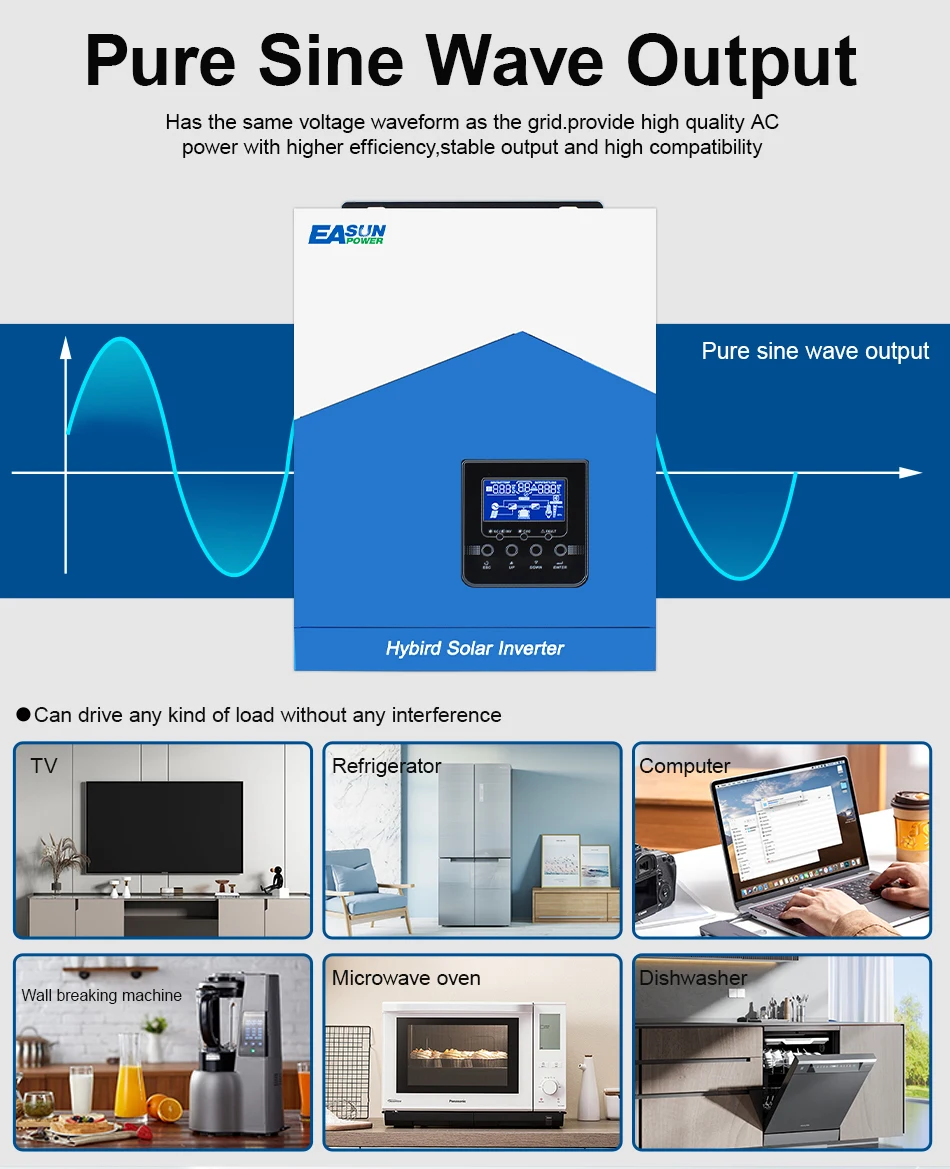

1.Pure sine wave inverter.
2.Buit-in MPPT solor charge controlier.
3.Selectable input voltage range for home appliances and personalcomouters.
4.Selectable charging current based on applications.
5.Configurable AC/Solar input priority via LCD setting.
6.Compatible to mains voltoge or generotor power.
7.Auto restart while AC is recovering.
8.Overfoad ond short circuit protection.
9.Smart battery charger design for optimized battery performance.
10.Cold start funtion.

Specification

Models	ISolar-SMH-II-3.2KW
Rated Power	3200VA/3000W
INPUT
Voltage	230Vac
Selectable Voltage Range	(170Vac~280Vac)±2%;(90Vac-280Vac)±2%
Frequency Range	50Hz/60Hz (Autodetection)
OUTPUT
AC Voltage Regulation (Batt.Mode)	230VAC±5%
Surge power	6400VA
Transfer Time	10ms(for personal computers)/20ms(for home appliances)
Wave form	Pure Sine Wave
BATTERY & AC CHARGER
Battery Voltage	24VDC
Floating Charge Voltage	27VDC
Overcharge Protection	31VDC
Maximum charge current	60A
SOLAR CHARGER
MAX.PV Array Power	3000W
MPPT Range@Operating Voltage	55-450VDC
Maximum PV Array Open Circuit Voltage	450VDC
Maximum Charging Current	80A
Maximum Efficiency	98%
PHYSICAL
Dimension.D*W*H(mm)	405x286x98mm
NetWeight(kgs)	5.0kg

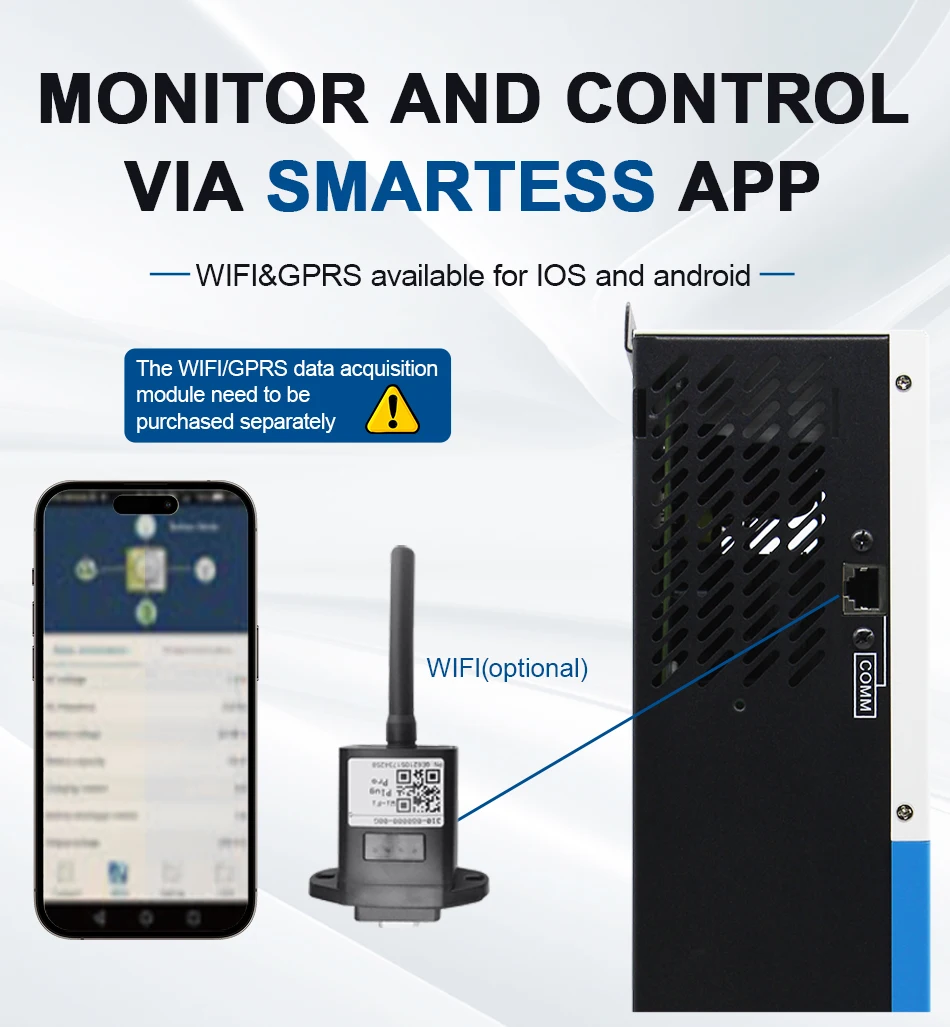

Communication Interface	RS232/RS485(Standard) / GPRS/WIFI (Optional)
OPERATING ENVIRONMENT
Humidity	5% to 95% Relative Humidity (Non-condensing)
Operating Temperature	-10°Cto55°C
Storage Temperature	-15°Cto60°C
